Smyth Welding 108 HS & HD (Industrial)

Videos

Documents

  • Snowblower Manual.pdf

    Snowblower Manual.pdf

  • 102 & 108 Snowblowers.pdf

    102 & 108 Snowblowers.pdf

Item Information

Model
108 HS & HD (Industrial)
Category Name
Agriculture
Year
Sale Type
New
Manufacturer
Smyth Welding
Quantity
Manufacturer Qty

Description

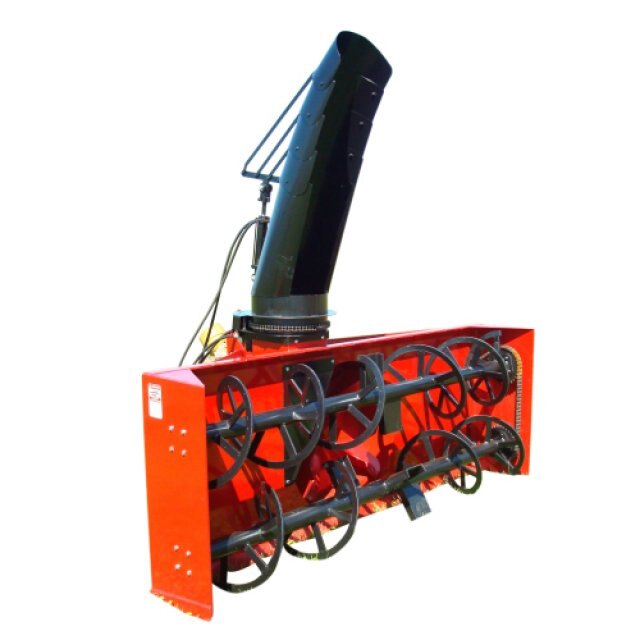

Smyth’s 108” single auger snowblowers have a 24” auger, while the double auger snowblowers have two 20” augers. These blowers have a 12” x 36” fan, and a drive-line capable for over 200 h.p. Standard features on this blower include ½” thick re-inforced fan blades, 3/16” thick fan housing and body, 7/16” thick end plates, 3/4” thick “A” frame and hitch clevis, and #80 heavy roller chain for the auger drive.
The hardened and ground gearbox shafts and gears, as well as shear bolt protection on the PTO and auger drive, ensure many hours of trouble free blowing. With this strong and durable piece of equipment, you know this machine will be tough enough for any job put to it!
  Technical Specifications:

CUTTING WIDTH
AUGER
FAN
WEIGHT (LBS) HOOD
108" 24″
12″ X 36″
2120 Orbital
108"  16” & 24” 12″ X 36″ 2500 Orbital
  Product Options:



Orbital Motor Hood Turner (Chain Drive)

The benefits of the Orbital Motor Hood Turner (Chain Drive) is that it has a 270 degree hood rotation, and is a very powerful and durable design for our larger units! This is a standard option on these larger snowblowers.

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg   http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg  http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

Hydraulic back drag

Hyd Back Drag 6 Hyd Back Drag 6

Flex Hood

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg   http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

12 Volt Actuator


The 12 volt actuator can be used when hydraulic control is not an option.

This options allows smooth operation with internal controls.


http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

Cylinder & Hoses


Cylinder & Hoses NOT included when hydraulic hood is standard on snowblowers.

This option is the most durable and reliable method of controlling your hood rotation or deflection when hydraulics are available.


Rotating Fan Housing Side Discharge



Features Include:

– Orbital motor powered rotating fan housing allowing side discharge left or right.

– Hardened / replaceble “clips” for housing to rotate against.

The advantages of having this options inlcude:

– Increased fan capacity

– Reduction in horse power required

– Blowing snow into wind is no problem as snow is discharged low on the fan housing

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg  http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg  http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg
http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg  http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg  http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

Steering Wing Edges

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg       http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

Truck Loading Chute



Our truck loading chute option is a great option to have if you are loading dump trucks, as it gives extended reach for loading!

*Please specify height*

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

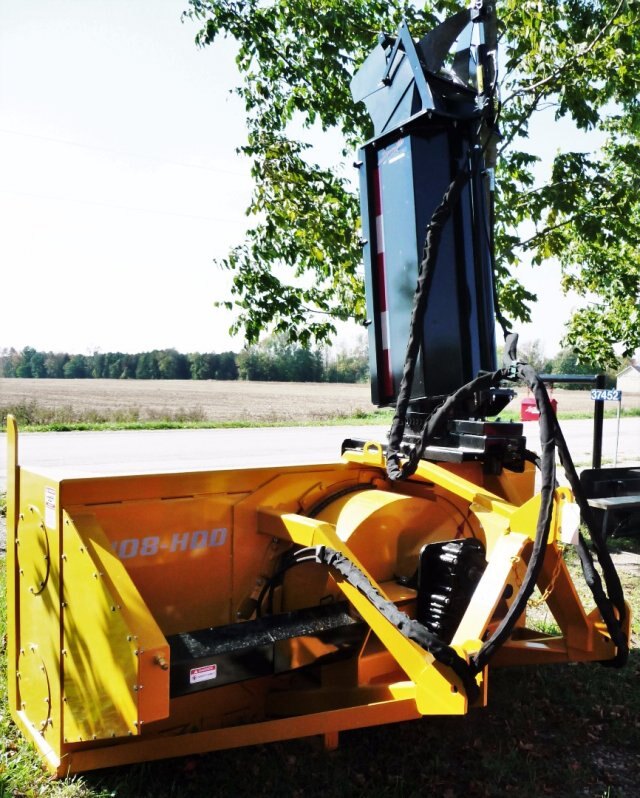

Telescopic Truck Loading Chute

Our telescopic truck loading chute option gives extended reach and control for loading trucks, and more adjustability, which makes it easier when doing the job!

Includes:

  • Orbital motor for hood turner
  • Flex hood
  • Cylinder & hoses
  • 30″ of vertical travel (cylinder & hoses included)

Download:  Telescopic truck loading chute drawing brochure

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg




Oil Bath Chain Case with Spring Tensioner

Our oil bath chain case option offers longer chain life, with less maintenance and smooth quiet operation!


5 Blade Fan

The 5 blade fan option give more capacity in lighter snow, and smoother flow of material in heavy snow!


1000 RPM


1-3/8″ x 21 Spline on PTO or 1-3/4″ 20 Spline on PTO (150 H.P to 225 H.P).

The 1000 RPM option allows you to use high speed PTO to operate your snowblower, while reducing torque load on the drive line. We have many different gear boxes available to suit your horse power requirements.



Heavy Duty 1000 RPM

1-3/4″ x 20 Spline on PTO (Over 200 H.P)

The 1000 RPM option allows you to use high speed PTO to operate your snowblower, while reducing torque load on the drive line.

We have many different gear boxes available to suit your horse power requirements.


http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg


Weld On Cutting Edge

Our weld on cutting edge has mild steel wear bars, stitch welded to the wearing surfaces on the under side of the snowblower.


Bolt On Cutting Edge

Our bolt on cutting edge is a hardened bevelled bar, that is bolted to the wearing surfaces on the under side of the snowblower.

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg


Adjustable Skid Shoes

The adjustable skid shoes allow you to adjust the cutting depth of the snowblower. This is typically used for softer or uneven surfaces.

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg


Wing Edges

Wing edges extend and re-inforce the end plates of the snowblower for better bank cutting ability!

http://smythwelding.com/wp-content/uploads/2015/12/Orbital-Motor-Hood-Turner-150x150.jpg

Light Duty 1000 RPM


1-3/8″ x 21 Spline on PTO or 1-3/4″ 20 Spline on PTO (150 H.P to 225 H.P).

The 1000 RPM option allows you to use high speed PTO to operate your snowblower, while reducing torque load on the drive line. We have many different gear boxes available to suit your horse power requirements.
